Extracardiac Complications in Intensive Care Units after Surgical Repair for Congenital Heart Disease: Imaging Review with a Focus on Ultrasound and Radiography
- Abstract
- Introduction
- Classification Based on the Location of the Extracardiac Organ
- Approach Methods Using Ultrasound for Various Complications
- Timing of Examination
-
Locations and Types of Complications: Intrathoracic and Diaphragmatic Complications
-
Locations and Types of Complications: Intra-abdominal and Other Locations' Complications
- Conclusion
- References
Abstract
Pediatric patients show various extracardiac complications after cardiovascular surgery, and radiography and ultrasound are routinely performed in the intensive care unit to detect and evaluate these complications. This review presents images of these complications, sonographic approach, and timing of occurrence that are categorized based on their extracardiac locations and include complications pertaining to the central nervous system, mediastinum, thorax and lung parenchyma, diaphragm, liver and biliary system, and kidney along with pleural effusion and iatrogenic complications. This pictorial review will make it easier for medical doctors in intensive care units to identify and manage various extracardiac complications in pediatric patients after cardiovascular surgery.
#
Introduction
Various extracardiac complications have been reported in pediatric patients after cardiovascular surgery.[1] These patients should receive early and appropriate interventions to prevent a prolonged stay in the intensive care unit.[2] [3] [4] Radiography and ultrasound are routinely performed at patients' bedside by pediatric physicians, cardiologists, intensivists, or radiologists to detect these complications and evaluate the patients' condition while they are admitted to the intensive care unit.[3] [5] [6] [7]
To the best of our knowledge, although some previous reports have focused on the risk factors for the occurrence of these complications and their prognosis, there are no reports focusing on the image findings of these complications. The purpose of this review is to show the image findings of these complications using radiography and ultrasound.[2] [8] [9] [10] This pictorial review will help doctors in intensive care units to more easily identify and manage various extracardiac complications in pediatric patients after cardiovascular surgery.
#
Classification Based on the Location of the Extracardiac Organ
The extracardiac complications occurring after cardiovascular surgery are classified based on the locations of occurrence. [Tables 1] and [2] show locations and types of these complications ([Table 1]: locations and types of complications and intrathoracic and diaphragmatic complications, and [Table 2]: locations and types of complications and intra-abdominal and other locations' complications). Although their incidence and timing of onset vary depending on the underlying congenital heart diseases, treatments or institutions' comprehensive data pertaining to these complications are important for daily management and evaluation of pediatric patients after cardiovascular surgery in the intensive care unit.
Location |
Types |
Incidence (number of occurrence/total number) |
Interval between surgery and diagnosis average ± SD (range) |
Comments |
Ref. |
---|---|---|---|---|---|
Mediastinum |
Hemorrhage/hematoma |
10% (6/54) |
[115] |
||
N/A |
16 (12–22) days |
3 cases |
[9] |
||
4.1% (5/121) |
Only patients who underwent mechanical aortic valve replacement were included |
[116] |
|||
N/A |
1 and 10 days |
2 cases |
[12] |
||
11–40% |
Variable bleeding rate depending on the implanted durable devices |
[117] |
|||
SSI |
2.2% (9/412) 5.8% (24/412) |
Organ/space infection DII or SWI |
[2] |
||
2.4% (27/1,117) 0.1% (1/1,117) 0.9% (10/1,117) |
Organ/space infection DII SWI |
[118] |
|||
0.8% (7/826) 1.5% (12/826) |
Organ/space infection DII and SWI |
[119] |
|||
N/A |
17.2 (6–30) days 5 and 10 days |
6 cases with DII and SWI 2 cases with organ/space infection |
[120] |
||
6.3% (384/6,127) 1.8% (107/6,127) |
Wound infection with delayed sternal closure Mediastinitis with delayed sternal closure |
[121] |
|||
Mediastinitis (organ/space infection) |
1.1% (29/2,675) |
10 (5–27) days |
[122] |
||
N/A |
27.3 (7–53) days |
[9] |
|||
0.2% (17/7,616) |
14 (6–50 days) days |
[18] |
|||
0.85% (57/6,705) |
13 days |
[123] |
|||
5% (10/202) |
[124] |
||||
1.4% (19/1,405) |
32 days (5 days–9 months) |
[125] |
|||
1.7% (64/3,650) |
13.4 (4–37) days |
[126] |
|||
8.3% (3/36) |
8.8 (5–14) days |
Only neonate (under 4 weeks of age) were included |
[127] |
||
Pleural effusion |
Pleural effusion |
N/A |
|||
Hemothorax |
N/A |
||||
Chylothorax |
5% (57/1,135) |
0–10 days |
[23] |
||
5% (12/238) |
Chylothorax or plastic bronchitis. All cases with Fontan procedure were included. |
[30] |
|||
Thorax |
Pneumothorax |
N/A |
|||
Lug parenchyma |
Atelectasis |
N/A |
|||
Lung infection |
Pneumonia Respiratory infection upper Respiratory infection lower |
0.7% (3/412) 1.7% (7/412) 0.5% (2/412) |
[2] |
||
Diaphragm |
Diaphragmatic paralysis |
1.5% (25/1,656) |
Plication rate was 44%, and the procedure was performed 2–3 weeks after operation |
[128] |
|
0.46% (47/10,200) |
Plication rate was 79%, and the procedure was performed 24 ± 14 days after the operation |
[41] |
|||
2.1% (19/891) |
Plication rate was 79% |
[40] |
|||
4.9% (152/3,071) |
Plication rate was 1.3%, and the procedure was performed 17.8 ± 3.6 days after the operation |
[39] |
|||
4.8% (24/500) |
Plication was performed in all cases |
[129] |
Abbreviations: DII, deep incisional infection; N/A, not available; Ref., reference; SD, standard deviation; SSI, surgical site infection; SWI, superficial wound infection.
Location |
Types |
Incidence (number of occurrence/total number) |
Interval between surgery and diagnosis average ± SD (range) |
Comments |
Ref. |
---|---|---|---|---|---|
CNS |
IVH Cerebral infarction |
0.9% (5/543) 1.7% (9/543) |
[49] |
||
IVH |
17% (6/34) |
4 hours after the surgery (routine examination) |
Arterial switch operation in neonates |
[50] |
|
Subdural hemorrhage |
0.1% (1/706) |
[47] |
|||
Liver and biliary system |
Acute liver failure (liver insufficiency) |
15% (8/54) |
This study focused on the NEC. Neonates with and without NEC were included. |
[70] |
|
Debris within biliary system |
N/A |
19th day |
Case report |
[130] |
|
Intestine |
NEC |
11% (8/73) |
[70] |
||
18% (9/43) |
Hypoplastic left heart syndrome |
[68] |
|||
13% (14/108) 12% (8/66) 14% (7/50) |
25 ± 17 (days of life) 36 ± 19 (days of life) 22 ± 15 (days of life) |
Indomethacin (performed 4 ± 3 days of life) Indomethacin and ligation (11 ± 8 days of life) Ligation (9 ± 13 days of life) Treatment for PDA in premature neonates; |
[73] |
||
11.0% (8/65) 5.8% (3/49) |
Only neonates performed the Norwood procedure were included and using different protocol of enteral feeding |
[131] |
|||
14/52 (27%) 3/46 (6.5%) |
Hypoplastic left heart syndrome after the Norwood procedure and using different protocol of enteral feeding |
[71] |
|||
N/A |
21 postoperative hours (1 case) 1 postoperative day (2 cases) |
3 cases reports |
[69] |
||
1.7% (19/1120) |
[67] |
||||
Paradoxical hypertension result in postcoarctectomy syndrome or mesenteric arteritis |
56% (14/25) |
After repair of coarctation of the aorta |
[86] |
||
6% (9/145) |
4 (3–6) days |
After repair of coarctation of the aorta |
[72] |
||
Gastroenteritis |
0.08% (1/1120) |
[67] |
|||
Kidney |
AKI |
90% (53/59) |
Using ECMO during cardiovascular surgery |
[132] |
|
54% (352/613) |
2 (1–6) days |
AKI remained stable until 4th postoperative days |
[133] |
||
62% (76/122) |
Progression of AKI within 48 hours after surgery |
Only neonates were included |
[8] |
||
35% (33/125) |
1 postoperative day in 57% of cases (1–27 days) |
Most cases resolved within 24 hours (65% of cases) |
[94] |
||
26% (51/194) 14% (28/201) |
<2 years ≥2years |
[134] |
|||
17% (53/311) |
Sever AKI (receipt of acute dialysis) |
[137] |
|||
51% (234/458) |
Usually within 48 hours after surgery |
[135] |
|||
UTI |
3.6% (15/412) |
[2] |
|||
Vascular complication[a] |
Phlebitis associated PICC[a] |
13% (83/654) |
86 hours (12–286 hours after insertion) |
[105] |
|
Venous thromboembolism |
2% (65/2,718) |
[136] |
|||
Thrombosis |
15% (8/53) 16% (6/37) |
4.8 ± 3.7 days 5.1 ± 3.6 days |
With heparin With placebo |
[106] |
Abbreviations: AKI, acute kidney injury; CNS, central nervous system; ECMO, extracorporeal membrane oxygenation; IVH; Intraventricular hemorrhage; N/A, not available; NEC, necrotizing enterocolitis; PDA, patent ductus arteriosus; PICC, peripheral inserted central catheter; SD, standard deviation; UTI, urinary tract infection.
a Catheter-associated complications: there were no previous reports focusing on pediatric patients after cardiovascular surgery; therefore, these incidences were reported from studies targeting pediatric patients.
#
Approach Methods Using Ultrasound for Various Complications
In clinical settings, abdominal or cardiac ultrasound is usually performed, whereas in intensive care units, ultrasound is performed for various sites ([Fig. 1]). The approach for nonfamiliar sites may differ across physicians; therefore, a schematic guideline to demonstrate the approach methods for nonfamiliar target organs, such as the cranium, trachea, mediastinum, lungs, and diaphragm, is necessary.[3] [11] [12] [13] [14] [15] Vascular complications can be found at any location; hence, point-of-care ultrasound is useful.
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-1.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
Timing of Examination
In the guideline for after surgical repair for congenital heart disease, if a change in clinical status or new concerning signs or symptoms are detected, computed tomography (CT) and radiography could be recommended.[16] In the guideline, however, transesophageal echocardiogram is included but ultrasound targeting the abdomen or other organs is not included.[16] The timing of examination could be varied based on the kinds of complication and of modality used for the diagnosis. Therefore, the timing of occurrence of each complication and strategy, including the modality for diagnosing the complications, was stated in each below section of complications.
#
Locations and Types of Complications: Intrathoracic and Diaphragmatic Complications
Mediastinum
Information regarding mediastinal complications, including surgical site infection (mediastinitis) and hemorrhage, is important to ensure appropriate intervention ([Table 1]).
#
Timing of Occurrence and Strategy for the Diagnosis
The complications in the mediastinum include hemorrhage or surgical site infection. Mediastinal hemorrhage usually occurs within 1 week after intrathoracic surgery.[9] [17] [18] [19] The surgical site infection (organ/space infection [mediastinitis]) usually occurs 1 week after intrathoracic surgery.[9] [17] [18] [19] Computed tomography is reported to be a useful modality for diagnosing mediastinitis; however, this modality requires radiation exposure and cannot be performed at a patient's bedside; ultrasound is reported to be useful for diagnosing mediastinitis.[5] [12] [20] If the circulation status is stable to undertake the ultrasound, ultrasound is used to detect the retrosternal fluid correction at the patients' bedsides. If fluid correction is detected, further examinations, such as CT, were recommended.[9] [12] [19] Color Doppler ultrasound is useful for evaluating the intrathoracic structure and differentiating a pseudoaneurysm from the fluid correction.[5] [12]
-
Mediastinal hematoma/hemorrhage: Hematoma or bleeding at the surgical site is a critical complication during and after surgical procedures, and it is a common complication that requires reoperation.[1] Hematoma results in an unstable circulation status, necessitating rapid surgical intervention. Management of hematomas may be difficult and should be based on each patient's condition. In addition to vital sign and laboratory data, image findings may be useful to diagnose this complication ([Fig. 2]).[12]
-
Surgical site infection (incisional or organ/space [mediastinitis]): surgical site infection is classified into following three types based on the depth of the infection: (1) superficial wound infection, (2) deep incisional infection, and (3) organ/space infection. Mediastinitis is classified as an organ/space infection, and it causes critical complications, has a high mortality rate, and requires adequate surgical intervention ([Figs. 3] and [4]).[2] [9]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-2.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-3.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-4.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
Sonographic Evaluation
Ultrasound was recently reported to be useful in the evaluation of mediastinitis.[5] [12] Retrosternal fluid collection and parasternal hyperechogenicity are usually detected in cases of mediastinitis.[12] [19] Superficial wound infection and deep incisional infection are detected as parasternal or subcutaneous hyperechogenicity ([Fig. 3]), and organ/space infection is detected as retrosternal fluid collection ([Fig. 4]).[5] [12] Although these findings have high–negative predictive value for diagnosing mediastinitis, cases with hematoma may show these findings ([Fig. 2]).[9] [12] [19] In addition, Hosokawa et al reported that the two cases with mediastinitis having retrosternal simple fluid correction.[12] There are various CT reports that the cases with mediastinitis had various degree of enhancement and various timing when the mediastinitis occurred.[9] [17] [19] Echogenicity within the retrosternal fluid correction might be varied based on the degree of inflammation, period between the examination and onset of mediastinitis, and treatment before the examination.
#
Pleural Effusion, Thorax, and Lung Parenchyma
Atelectasis, pneumonia, or pleural effusion associated with mechanical ventilation may occur in pediatric patients after cardiovascular surgery.[2] These complications are caused by mechanical support modalities such as ventilation or extracorporeal membrane oxygenation (ECMO).[21] Lung ultrasound is typically used to evaluate these complications in intensive care units.[6] [22]
#
Timing of Occurrence and Strategy for Diagnosis
Hemothorax or atelectasis may occur during operation or in the intensive care unit. After ECMO, lung opacity for lung rest usually occurred within 24 hours, and may last only a few days or as long as 4 to 6 weeks depending on the patients' pulmonary condition.[21] The duration between thoracic duct injury and development of chylothorax is usually 0 to 10 days.[23] Pleural effusion is diagnosed by combination of clinical symptom, radiography, and ultrasound. Based on the species of pleural effusion, further recommended examination is changed. If the chylothorax suspected, lymphoscintigraphy is usually recommended.[24] [25] [26]
1. Pleural effusion without or with complex echogenicity
Pleural effusion is commonly observed after cardiovascular surgery. Ultrasound is a useful modality to evaluate the characteristics of this effusion ([Figs. 5] and [6]).[6] [22]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-5.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-6.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
Sonographic Evaluation
The echogenicity within the effusion is different for the varying etiologies of pleural effusion.[27] Transudative pleural effusion is anechoic ([Fig. 5]), while exudative pleural effusion showed septation or nonseptation and is anechoic.[27] Hemothorax occurs frequently after cardiovascular surgery. Blood in the pleural cavity shows a complex echogenicity, including hyper- to low-echoic density ([Fig. 6]).[28] [29]
2. Chylothorax
Chylothorax refers to the accumulation of the chyle in the pleural cavity that usually develops after disruption of the thoracic duct during intrathoracic surgery ([Fig. 7]).[23] Chylothorax after cardiovascular surgery is a not-so-rare complication and is related to the duration of hospitalization.[23] [30] Various modalities, such as lymphoscintigraphy, lymphangiography, and magnetic resonance lymphography, have been used to evaluate this condition and select appropriate treatment.[24] [25] [26] However, traumatic events resulting in chylothorax are usually obvious, minor surgical trauma has also been noted to result in chylothorax. Therefore, the lymphoscintigraphy procedure is important for diagnosing chylothorax. This examination is easy compared with lymphangiography because it is performed only after injection of 99 mTc-HAS-DTPA into the subcutaneous tissue of the bilateral dorsum pedis.[31] [32] The first treatment usually was total parenteral nutrition instead of the nutrition per mouth until chyle drainage decreases. Octreotide intravenous infusion is added in patients who do not show a response to these treatments.[23] In cases showing no response to conservative treatment, including surgical ligation, lymphatic-venous anastomosis, and embolization at the leakage, point system might be performed.[23] [24] [33]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-7.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
3. Pneumothorax
Pneumothorax can be demonstrated or excluded with a high degree of accuracy using ultrasound ([Figs. 8] and [9]).[6] [22] Artifacts, such as the comet-tail sign or bands, of reverberating echoes are normally seen at the junction of the pleura and the ventilated lung.[6] [22]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-8.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-9.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
Sonographic Evaluation

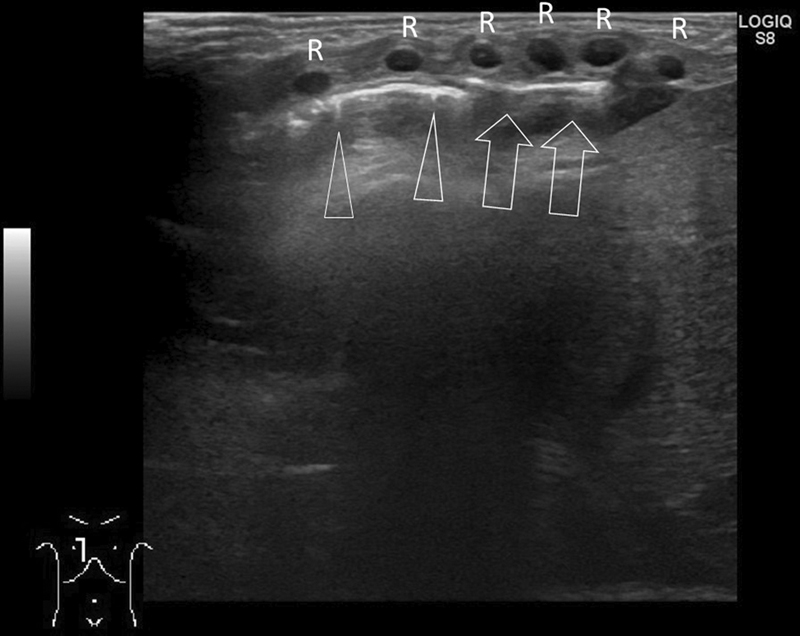

The detection of lung point, which represents the physical limit of pneumothorax, is important to diagnose the pneumothorax ([Fig. 8]).[34] The area with absence of lung sliding or movement of B-line, that is, comet tail–like artifact extending from pleural line to the bottom of the screen obliterating, is the area of affected pneumothorax ([Figs. 8] and [9]).[34] [35]
4. Atelectasis
Lung atelectasis is a common finding in the intensive care unit. Aspiration, prolonged bed rest, or iatrogenic factors may result in the atelectasis. In addition, atelectasis caused by lung rest usually occurs after ECMO ([Fig. 10]).[21] In patients undertaken the ECMO, the lungs show progressive opacification on radiograph. The etiology of these changes is unclear, but multifactor, such as varying degrees of widespread atelectasis and pulmonary edema, was influenced.[21] [36] Lung ultrasound was reported to be able to differentiate the atelectasis, lung edema, and pleural effusion.[6] [11] [22] [34] Therefore, ultrasound may be useful morality to evaluate the lung status after ECMO.
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-10.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
Sonographic Evaluation
Lung aeration can be classified as well aerated, partially aerated, or completely deaerated.[35] [37] The well-aerated lung is seen as A-line; this is seen as parallel lines in the intercostal space that descend to the bottom of the screen ([Fig. 9]). Dynamic sliding of the pleura is clearly detected in real time. The partially aerated lung is seen as B-line; this is seen as a comet tail–like artifact, extending from the pleural line to the bottom of the screen ([Fig. 8]). Increased numbers of B-line are seen in interstitial lung disease or edema.[37] [38] The deaerated lung, as in lung consolidation, has a shredding appearance on the air bronchogram ([Fig. 10]).
#
Diaphragm
Phrenic Nerve Paralysis
Timing of Occurrence and Strategy for Diagnosis
Phrenic nerve paralysis may occur during surgery. Surgical treatment, such as diaphragmatic plication, is usually performed at least 2 weeks after operation.[39] [40] [41] This complication is suspected in routine radiograph and ultrasound is usually recommended to evaluate the motion of diaphragm.[3] [13] [22] [39] [42] While fluorography is also a useful morality to diagnose this complication, this procedure cannot be performed at a patient's bedside.[42]
Phrenic nerve paralysis after cardiovascular surgery is associated with prolonged hospitalization ([Fig. 11]).[39] Radiographic findings showing the differences on each side of the diaphragm are important to suspect the presence of phrenic nerve paralysis.[42] Based on this suspicion, movement of the diaphragm is evaluated using ultrasound or fluorography.[3] [13] [22] [39] [42] M-mode ultrasonography in a longitudinal view of the diaphragm is performed by positioning the probe on the posterior axillary line on one side with the transducer notch pointing 12 o'clock toward axilla.[3] Paradoxical movement of the diaphragm or weak movement of the affected diaphragm is observed in cases with this complication.[39] [43]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-11.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
#
#
Sonographic Evaluation
Normal movement of the diaphragm is defined as movement toward the transducer during inspiration with an excursion of more than 4 mm and a difference of less than 50% between the movements of the two hemidiaphragms ([Fig. 11]). Paretic movement is defined as an amplitude of less than 4 mm and a difference of more than 50% between the movements of the two hemidiaphragms. Paradoxical movement is defined as diaphragmatic movement away from the transducer during inspiration ([Videos 1] and [2]; available in the online version).[3] [44] [45]
Video 1 The position of the left diaphragm is unchanged during inspiration and expiration. The right diaphragm demonstrates normal movement. The descending aorta is located more toward the right during expiration than during inspiration. Therefore, paradoxical movement of diaphragm was diagnosed. Ao, descending aorta.
Quality:
Video 2 Fluoroscopic examination of the diaphragm. The right normal hemidiaphragm descends with inspiration. The left hemidiaphragm demonstrates paradoxical upward movement with inspiration. The mediastinum is located more toward the right during expiration than during inspiration.
Quality:
#
#
Locations and Types of Complications: Intra-abdominal and Other Locations' Complications
Central nervous System
The incidence of acute neurologic complications after cardiovascular surgery in pediatric patients is reported to be 2 to 25%.[46] [47] Although the anterior fontanelle typically closes between the ages of 12 and 18 months, ultrasound via the fontanelle is useful to evaluate hemorrhage ([Table 2]).[48]
#
Timing of Occurrence and Strategy for Diagnosis
Central nervous system complications are associated with hypoperfusion, cardiac arrest, or thromboembolism, or treatment such as anticoagulant therapy.[46] [47] [49] Therefore, these complications may be encountered during cardiovascular surgery. Intracranial hemorrhage can be found 4 hours postoperatively using ultrasound.[50] However, cranial ultrasound is useful to diagnose this complication, in case with after closure of the anterior fontanelle, CT, or magnetic resonance imaging is needed to diagnose this complication.[51] Magnetic resonance imaging does not have need of radiation exposure, but it needs the relative longer time for examination compared the CT. The values of the resistive index, peak systolic, end diastolic, and time-averaged velocities of intracranial artery are determined by using Doppler techniques, and that is useful for the diagnosis, follow-up, and management of brain damage.[52] [53]
-
Hemorrhage: hemorrhage is associated with anticoagulant therapy or prematurity ([Fig. 12]).[47] [48] Ultrasound via the anterior fontanelle is useful to evaluate this complication.[48] It is important to distinguish the choroid plexus hemorrhage from the normal choroid plexus, which is also echogenic. The echogenicity anterior to the caudothalamic groove represents blood as the choroid plexus finishes at the caudothalamic groove, and the choroid plexus hemorrhage is diagnosed sonographically when the affected side is enlarged, or irregular in contour as compared with the contralateral nonaffected side.[51] [54] [55] [56] Sequelae, such as hydrocephalus and brain atrophy, can also be evaluated using ultrasound.[48] [57]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-12.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
Liver and Biliary System
Liver dysfunction in pediatric patients with congenital heart disease is associated with congestion and low cardiac output.[58] Liver complications after the Fontan procedure are known to be chronic in nature.[59] Acute liver failure after cardiovascular surgery is usually associated with low cardiac output during the operation.[60] [61] In addition, fatty liver or accumulation of debris within the biliary system may be caused by using medication or total parenteral nutrition.
#
Timing of Occurrence and Strategy for Diagnosis
Acute liver failure or liver sufficiency is usually accompanied with low cardiac output during operation and acute renal failure.[60] [61] Therefore, circulation status during the operation is important. The ultrasound should be the first method of diagnostic imaging used for inflammation of biliary system and differentiate from other liver diseases.[62] The contrast-enhanced CT or magnetic resonance imaging may be recommended to evaluate etiology of inflammation of biliary system, such as causative stone in the gallbladder or bile duct, if the etiology is not detected clearly buy ultrasound.[62]
-
Acute liver failure (liver sufficiency): patients with acute liver failure usually show evidence of low cardiac output and acute renal failure ([Fig. 13]).[60] [61] Acute liver failure after cardiovascular surgery may occasionally present with marked prolongation of the prothrombin time, which is associated with failure of hemostasis and hypoglycemia.[60] [61]
-
Fatty liver: fatty liver is a rare disease in pediatric patients ([Fig. 14]). However, it may appear in these patients as a result of medications or total parenteral nutrition.[63] [64] Liver disorder in the intensive care unit is occasionally caused by fatty liver.
-
Accumulation of debris within the biliary system: some drugs or total parenteral nutrition may result in the accumulation of debris within the biliary system ([Fig. 15]).[65] [66] In some cases, this complication required appropriate treatment.[66] Ultrasound is a useful modality to evaluate this condition.[65]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-13.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-14.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-15.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
Intestine
Gastrointestinal complications after cardiovascular surgery are associated with longer hospitalization periods.[67] These gastrointestinal complications include necrotizing enterocolitis, vocal cord paralysis, gastrointestinal bleeding, ileus, or enteritis.[1] [10] [67] [68] Necrotizing enterocolitis is reported to be the most common event.[67] [68] To prevent these complications, various enteral feeding programs are tested.[69] [70] [71]
Timing of Occurrence and Strategy for Diagnosis
Congenital heart disease is one of the risk factors for necrotizing enterocolitis. In addition, paradoxical hypertension may be occurred after repair of the coarctation of aorta.[72] The necrotizing enterocolitis occurs even before surgery or 1 day after surgery.[69] [70] [73] [74] The diagnosis of necrotizing enterocolitis is usually performed based on the radiograph according to Bell's staging criteria.[75] [76] [77] [78] The ultrasound provides the additional information to diagnose the necrotizing enterocolitis, therefore ultrasound is recommended as the next examination.[77] Paradoxical hypertension after repair of the coarctation of aorta was reported to be usually occurred 48 hours after operation. Clinical diagnosis could usually made based on the clinical sign.[72]
1. Necrotizing enterocolitis
Necrotizing enterocolitis more frequently occurs in pediatric patients with prematurity or those presenting with shock ([Figs. 16] and [17]).[68] Radiographic signs include a dilated intestine without peristalsis, intramural air, or portal venous gas.[69] Although radiography is a useful modality to evaluate these findings, ultrasound can more easily detect the portal venous gas and other findings such as the need for an urgent surgical intervention.[79] [80] [81]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-16.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-17.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
#
Sonographic Evaluation
It is important to evaluate the necessity of urgent surgical intervention in the presence of necrotizing enterocolitis. Presence or absence of intra-abdominal free air and echogenic ascites are important findings to recommend surgical intervention.[79] [80] [81] [82] [83] There are some reports that the cases with pneumatosis intestinalis confined to the colon had better prognosis than that extended to the small intestine, therefore evaluation for location of pneumatosis intestinalis could be useful.[79] [84] Portal venous gas, when detected, can be traced to its origin by following the hyperechoic foci in the portal vein along its branches with real-time ultrasound ([Fig. 16C] and [16D]; [Videos 3] [4] [5]; available in the online version).[81]
Video 3 Ultrasound image showing hyperechoic foci moving in the portal vein.
Quality:
Video 4 Hyperechoic foci seen moving from the splenic vein to portal vein.
Quality:
Video 5 Hyperechoic foci (arrows) seen in the inferior mesenteric vein, moving from the transverse and descending large colon. Free air and echogenic ascites are not detected and pneumatosis intestinalis is confined to the large colon. Therefore, this case was diagnosed as benign type of pneumatosis intestinalis and surgical intervention was not needed.
Quality:
2. Paradoxical hypertension results in postcoarctectomy syndrome or mesenteric arteritis
The coarctation of aorta is a little different from other congenital heart diseases. First, intra-abdominal of coarctation might be associated with occurrence of intestinal ischemia.[85] Second, paradoxical hypertension might be occurred after surgical repair of coarctation of the aorta.[72] [86] [87] The etiology is unclear but there appears to be a direct relationship to the hypertension that is observed in the postoperative period in these cases.[72] [86] [87] This complication might be result in abdominal pain, mesenteric arteritis, or arterial aneurysm.[72] [87] [88] [89] [90] Recognition of this complication and early treatment for this hypertension by using antihypertensive drugs will shorten the duration of symptoms.[72] [88] [89] Angiographic findings of this complication showed arterial segmental constriction, dilatation, or aneurysm.[87] [91] Ultrasound or CT was reported to be able to show the arterial lumen; therefore, these findings may be detected by ultrasound or CT.[92] [93]
#
Kidney
Renal dysfunction, renal infectious disease, or drug-induced renal dysfunction may occur in pediatric patients after cardiovascular surgery.[1] Higher morbidity and mortality are associated with more severe acute kidney injuries, and this complication is also associated with a longer intensive care unit stay.[8] [94]
Timing of Occurrence and Strategy for Diagnosis
Onset of acute kidney injury is 1 to 27 days after operation.[94] In neonates, progression of acute kidney injury can occur within 48 hours after surgery[8]. However, acute kidney disease is diagnosed based on the clinical data such as serum creatine, not imaging modality, ultrasound might provide the information about presence or absence of urinary tract obstruction.[95] [96] [97] Doppler technique is useful to evaluate the resistivity index and it is important information about renal parenchymal damage and prediction of clinical outcomes.[97] [98] [99]
-
Acute kidney injury: the sonographic findings for acute kidney injury are not specific but ultrasound may show enlargement or high echogenicity of the renal parenchyma ([Fig. 18]).[97] Doppler ultrasound may be useful to predict renal function.[8]
-
Nephrocalcinosis: nephrocalcinosis may be caused by furosemide that is usually an important medication in intensive care units ([Fig. 19]). Foci with high echogenicity are easily detected by using ultrasound, and the presence or absence of hydronephrosis can be evaluated.[100]
-
Urinary tract infection: urinary tract infection is one of the most frequent infectious foci in pediatric patients after cardiovascular surgery ([Figs. 20] and [21]).[1] [2] Ultrasound is reported to be useful in detecting the presence of hydronephrosis and to diagnose it as pyelonephritis or acute focal bacterial nephroma.[101]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-18.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-19.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-20.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-21.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
#
Vascular Complications Associated with Inserted Catheter and Drainage Tube Location
The risk of venous thrombotic events is higher in pediatric patients admitted to intensive care units.[102] The presence of a central venous catheter increases this risk.[102] Catheter-associated bloodstream infection is an important complication of care in children hospitalized with complex congenital heart disease.[103] In addition, phlebitis and osteomyelitis caused by thrombophlebitis have been reported.[104] Regardless of these potential complications, venous cannulation in intensive care units is usually unavoidable.
Timing of Occurrence and Strategy of Diagnosis
The timing of occurrence of thrombosis or phlebitis associated with catheter insertion is approximately 3 to 5 days after insertion.[105] [106] Physical examination is important to suspect thrombosis or phlebitis associated with catheter insertion.[107] In addition, ultrasound is a useful modality to evaluate these complications.[105] [106] If these complications are suspected to occur at intrathoracic vein or difficult location by using ultrasound, contrast-enhanced CT could be recommended.[108] Color Doppler is useful technique to detect the vessel and thrombosis.[105] [106] [109]
-
Thrombosis (thrombophlebitis): venous thrombosis could be caused from an inserted catheter and patient conditions such as an underlying disease, or inadequate prophylaxis ([Figs. 22] and [23]).[102] [104] Pulmonary embolism or thrombophlebitis caused by venous thrombosis may be critical for pediatric patients.[110] [111] [112] Ultrasound is usually used to evaluate the presence of thrombosis and its complications.[109]
-
Catheter migration: prevention of catheter migration is essential to avoid the complications associated with catheters ([Fig. 24]).[113] Ultrasound is a useful modality to guide cannulation and evaluate catheter migration.[113]
-
Arrangement of the location of the drainage tube: ultrasound is useful to evaluate the location of the catheter or drainage tube ([Fig. 25]). The location may be changed based on the findings obtained in ultrasound evaluations.
-
Endotracheal intubation: intubation-related issues are critical for pediatric patients in intensive care units. Repeated endotracheal intubation may be sometimes needed because of various underlying diseases ([Fig. 26]). Ultrasound has been reported to be useful for safe endotracheal intubation.[14] [114]
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-22.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-23.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-24.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-25.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-26.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
#
#
#
Conclusion
Various complications may occur after cardiovascular surgery. Radiography and ultrasound are important modalities to evaluate and manage these complications.
#
#
Conflict of Interest
None declared.
Ethical Approval
This research was performed in accordance with the tenets of the Declaration of Helsinki. This review article was approved by the ethics committee of our institution, and informed consent was waived.
-
References
- 1 Brown KL, Ridout D, Pagel C. et al. Incidence and risk factors for important early morbidities associated with pediatric cardiac surgery in a UK population. J Thorac Cardiovasc Surg 2019; 158 (04) 1185-1196.e7
- 2 Algra SO, Driessen MM, Schadenberg AW. et al. Bedside prediction rule for infections after pediatric cardiac surgery. Intensive Care Med 2012; 38 (03) 474-481
- 3 Gil-Juanmiquel L, Gratacós M, Castilla-Fernández Y. et al. Bedside ultrasound for the diagnosis of abnormal diaphragmatic motion in children after heart surgery. Pediatr Crit Care Med 2017; 18 (02) 159-164
- 4 Mangukia CV, Agarwal S, Satyarthy S, Datt V, Satsangi D. Mediastinitis following pediatric cardiac surgery. J Card Surg 2014; 29 (01) 74-82
- 5 Hosokawa T, Suzuki S, Tanami Y. et al. Ultrasound evaluation of complications after cardiovascular surgery in pediatric patients: A case series. Med Ultrason 2020; 22 (01) 108-113
- 6 Vitale V, Ricci Z, Cogo P. Lung ultrasonography and pediatric cardiac surgery: first experience with a new tool for postoperative lung complications. Ann Thorac Surg 2014; 97 (04) e121-e124
- 7 Hosokawa T, Takahashi H, Tanami Y. et al. Diagnostic accuracy of ultrasound for the directionality of testicular rotation and the degree of spermatic cord twist in pediatric patients with testicular torsion. J Ultrasound Med 2020; 39 (01) 119-126
- 8 Alabbas A, Campbell A, Skippen P, Human D, Matsell D, Mammen C. Epidemiology of cardiac surgery-associated acute kidney injury in neonates: a retrospective study. Pediatr Nephrol 2013; 28 (07) 1127-1134
- 9 Hosokawa T, Yamada Y, Tanami Y. et al. Computed tomography findings of mediastinitis after cardiovascular surgery. Pediatr Int (Roma) 2020; 62 (02) 206-213
- 10 Rakhit A, Nurko S, Gauvreau K, Mayer JE, Blume ED. Gastrointestinal complications after pediatric cardiac transplantation. J Heart Lung Transplant 2002; 21 (07) 751-759
- 11 Bello G, Blanco P. Lung ultrasonography for assessing lung aeration in acute respiratory distress syndrome: a narrative review. J Ultrasound Med 2019; 38 (01) 27-37
- 12 Hosokawa T, Tanami Y, Sato Y, Ko Y, Nomura K, Oguma E. Comparison of sonographic findings between pediatric patients with mediastinitis and without mediastinitis after cardiovascular surgery. J Med Ultrason (2001) 2020; (e-pub ahead of print) DOI: 10.1007/s10396-020-01029-3.
- 13 Hosokawa T, Yamada Y, Takahashi H. et al. Postnatal ultrasound to determine the surgical strategy for congenital diaphragmatic hernia. J Ultrasound Med 2019; 38 (09) 2347-2358
- 14 Mori T, Nomura O, Hagiwara Y, Inoue N. Diagnostic accuracy of a 3-point ultrasound protocol to detect esophageal or endobronchial mainstem intubation in a pediatric emergency department. J Ultrasound Med 2019; 38 (11) 2945-2954
- 15 Siegel Med. Pediatric Sonography 5th ed. Philadelphia, PA: Wolters Kluwer; 2018: 156-195
- 16 Sachdeva R, Valente AM, Armstrong AK. et al. ACC/AHA/ASE/HRS/ISACHD/SCAI/SCCT/SCMR/SOPE 2020 appropriate use criteria for multimodality imaging during the follow-up care of patients with congenital heart disease: a report of the American College of Cardiology Solution Set Oversight Committee and Appropriate Use Criteria Task Force, American Heart Association, American Society of Echocardiography, Heart Rhythm Society, International Society for Adult Congenital Heart Disease, Society for Cardiovascular Angiography and Interventions, Society of Cardiovascular Computed Tomography, Society for Cardiovascular Magnetic Resonance, and Society of Pediatric Echocardiography. J Am Coll Cardiol 2020; 75 (06) 657-703
- 17 Yamaguchi H, Yamauchi H, Yamada T, Ariyoshi T, Aikawa H, Kato Y. Diagnostic validity of computed tomography for mediastinitis after cardiac surgery. Ann Thorac Cardiovasc Surg 2001; 7 (02) 94-98
- 18 Tortoriello TA, Friedman JD, McKenzie ED. et al. Mediastinitis after pediatric cardiac surgery: a 15-year experience at a single institution. Ann Thorac Surg 2003; 76 (05) 1655-1660
- 19 Foldyna B, Mueller M, Etz CD. et al. Computed tomography improves the differentiation of infectious mediastinitis from normal postoperative changes after sternotomy in cardiac surgery. Eur Radiol 2019; 29 (06) 2949-2957
- 20 Abu-Omar Y, Kocher GJ, Bosco P. et al. European Association for Cardio-Thoracic Surgery expert consensus statement on the prevention and management of mediastinitis. Eur J Cardiothorac Surg 2017; 51 (01) 10-29
- 21 Thompson AF, Luan J, Al Aklabi MM, Cave DA, Ryerson LM, Noga ML. Pediatric extracorporeal membrane oxygenation (ECMO): a guide for radiologists. Pediatr Radiol 2018; 48 (10) 1488-1502
- 22 Mong A, Epelman M, Darge K. Ultrasound of the pediatric chest. Pediatr Radiol 2012; 42 (11) 1287-1297
- 23 Ismail SR, Kabbani MS, Najm HK, Shaath GA, Jijeh AM, Hijazi OM. Impact of chylothorax on the early post operative outcome after pediatric cardiovascular surgery. J Saudi Heart Assoc 2014; 26 (02) 87-92
- 24 Inoue M, Nakatsuka S, Yashiro H. et al. Lymphatic intervention for various types of lymphorrhea: access and treatment. Radiographics 2016; 36 (07) 2199-2211
- 25 Momose M, Kawakami S, Koizumi T. et al. Lymphoscintigraphy using technetium-99m HSA-DTPA with SPECT/CT in chylothorax after childbirth. Radiat Med 2008; 26 (08) 508-511
- 26 Gurevich A, Nadolski GJ, Itkin M. Novel lymphatic imaging and percutaneous treatment of chyluria. Cardiovasc Intervent Radiol 2018; 41 (12) 1968-1971
- 27 Brogi E, Gargani L, Bignami E. et al. Thoracic ultrasound for pleural effusion in the intensive care unit: a narrative review from diagnosis to treatment. Crit Care 2017; 21 (01) 325
- 28 Franco J, Llopis E, Galán G. Hemothorax after endobronchial ultrasound-guided transbronchial needle aspiration. J Bronchology Interv Pulmonol 2016; 23 (04) 328-330
- 29 Chung MH, Hsiao CY, Nian NS. et al. The benefit of ultrasound in deciding between tube thoracostomy and observative management in hemothorax resulting from blunt chest trauma. World J Surg 2018; 42 (07) 2054-2060
- 30 Ghosh RM, Griffis HM, Glatz AC. et al. Prevalence and cause of early fontan complications: does the lymphatic circulation play a role?. J Am Heart Assoc 2020; 9 (07) e015318
- 31 Pui MH, Yueh TC. Lymphoscintigraphy in chyluria, chyloperitoneum and chylothorax. J Nucl Med 1998; 39 (07) 1292-1296
- 32 Suga K, Kume N, Hara A. et al. Abnormal lymphatic flow demonstrated by lymphoscintigraphy in chylothorax correlation with lymphography. Clin Nucl Med 1999; 24 (09) 716-717
- 33 Kato M, Watanabe S, Iida T, Watanabe A. Flow pattern classification in lymphatic malformations by indocyanine green lymphography. Plast Reconstr Surg 2019; 143 (03) 558e-564e
- 34 Raimondi F, Rodriguez Fanjul J, Aversa S. et al; Lung Ultrasound in the Crashing Infant (LUCI) Protocol Study Group. Lung ultrasound for diagnosing pneumothorax in the critically ill neonate. J Pediatr 2016; 175: 74-78.e1
- 35 Smith MJ, Hayward SA, Innes SM, Miller ASC. Point-of-care lung ultrasound in patients with COVID-19 - a narrative review. Anaesthesia 2020; 75 (08) 1096-1104
- 36 Schmidt M, Pellegrino V, Combes A, Scheinkestel C, Cooper DJ, Hodgson C. Mechanical ventilation during extracorporeal membrane oxygenation. Crit Care 2014; 18 (01) 203
- 37 Moore S, Gardiner E. Point of care and intensive care lung ultrasound: A reference guide for practitioners during COVID-19. Radiography (Lond) 2020; (e-pub ahead of print) DOI: 10.1016/j.radi.2020.04.005.
- 38 Xie HQ, Zhang WW, Sun S. et al. A simplified lung ultrasound for the diagnosis of interstitial lung disease in connective tissue disease: a meta-analysis. Arthritis Res Ther 2019; 21 (01) 93
- 39 Akay TH, Ozkan S, Gultekin B. et al. Diaphragmatic paralysis after cardiac surgery in children: incidence, prognosis and surgical management. Pediatr Surg Int 2006; 22 (04) 341-346
- 40 Zhao HX, D'Agostino RS, Pitlick PT, Shumway NE, Miller DC. Phrenic nerve injury complicating closed cardiovascular surgical procedures for congenital heart disease. Ann Thorac Surg 1985; 39 (05) 445-449
- 41 Zhang YB, Wang X, Li SJ, Yang KM, Sheng XD, Yan J. Postoperative diaphragmatic paralysis after cardiac surgery in children: incidence, diagnosis and surgical management. Chin Med J (Engl) 2013; 126 (21) 4083-4087
- 42 de Vries TS, Koens BL, Vos A. Surgical treatment of diaphragmatic eventration caused by phrenic nerve injury in the newborn. J Pediatr Surg 1998; 33 (04) 602-605
- 43 Nason LK, Walker CM, McNeeley MF, Burivong W, Fligner CL, Godwin JD. Imaging of the diaphragm: anatomy and function. Radiographics 2012; 32 (02) E51-E70
- 44 Chavhan GB, Babyn PS, Cohen RA, Langer JC. Multimodality imaging of the pediatric diaphragm: anatomy and pathologic conditions. Radiographics 2010; 30 (07) 1797-1817
- 45 Epelman M, Navarro OM, Daneman A, Miller SF. M-mode sonography of diaphragmatic motion: description of technique and experience in 278 pediatric patients. Pediatr Radiol 2005; 35 (07) 661-667
- 46 Ferry PC. Neurologic sequelae of open-heart surgery in children. An 'irritating question'. Am J Dis Child 1990; 144 (03) 369-373
- 47 Menache CC, du Plessis AJ, Wessel DL, Jonas RA, Newburger JW. Current incidence of acute neurologic complications after open-heart operations in children. Ann Thorac Surg 2002; 73 (06) 1752-1758
- 48 Maller VV, Cohen HL. Neonatal head ultrasound: a review and update-part 1: techniques and evaluation of the premature neonate. Ultrasound Q 2019; 35 (03) 202-211
- 49 Trittenwein G, Nardi A, Pansi H. et al; Verein zur Durchführung wissenschaftlichter Forschung auf dem Gebeit der Neonatologie und Pädiatrischen Intensivmedizin. Early postoperative prediction of cerebral damage after pediatric cardiac surgery. Ann Thorac Surg 2003; 76 (02) 576-580
- 50 Sigler M, Vazquez-Jimenez JF, Grabitz RG. et al. Time course of cranial ultrasound abnormalities after arterial switch operation in neonates. Ann Thorac Surg 2001; 71 (03) 877-880
- 51 Svrckova P, Meshaka R, Holtrup M. et al. Imaging of cerebral complications of extracorporeal membrane oxygenation in infants with congenital heart disease - ultrasound with multimodality correlation. Pediatr Radiol 2020; 50 (07) 997-1009
- 52 Couture A, Veyrac C, Baud C, Saguintaah M, Ferran JL. Advanced cranial ultrasound: transfontanellar Doppler imaging in neonates. Eur Radiol 2001; 11 (12) 2399-2410
- 53 Wong WS, Tsuruda JS, Liberman RL, Chirino A, Vogt JF, Gangitano E. Color Doppler imaging of intracranial vessels in the neonate. AJR Am J Roentgenol 1989; 152 (05) 1065-1070
- 54 Parodi A, Govaert P, Horsch S, Bravo MC, Ramenghi LA. eurUS.brain group. Cranial ultrasound findings in preterm germinal matrix haemorrhage, sequelae and outcome. Pediatr Res 2020; 87 (Suppl. 01) 13-24
- 55 Ortinau CM, Anadkat JS, Smyser CD, Eghtesady P. Intraventricular hemorrhage in moderate to severe congenital heart disease. Pediatr Crit Care Med 2018; 19 (01) 56-63
- 56 Reeder JD, Kaude JV, Setzer ES. Choroid plexus hemorrhage in premature neonates: recognition by sonography. AJNR Am J Neuroradiol 1982; 3 (06) 619-622
- 57 Maller VV, Choudhri AF, Cohen HL. Neonatal head ultrasound: a review and update-part 2: the term neonate and analysis of brain anomalies. Ultrasound Q 2019; 35 (03) 212-223
- 58 Komatsu H, Inui A, Kishiki K. et al. Liver disease secondary to congenital heart disease in children. Expert Rev Gastroenterol Hepatol 2019; 13 (07) 651-666
- 59 Hilscher MB, Johnson JN, Cetta F. et al. Surveillance for liver complications after the Fontan procedure. Congenit Heart Dis 2017; 12 (02) 124-132
- 60 Sivan Y, Nutman J, Zeevi B, Berant M, Levinsky L, Schonfeld T. Acute hepatic failure after open-heart surgery in children. Pediatr Cardiol 1987; 8 (02) 127-130
- 61 Jenkins JG, Lynn AM, Wood AE, Trusler GA, Barker GA. Acute hepatic failure following cardiac operation in children. J Thorac Cardiovasc Surg 1982; 84 (06) 865-871
- 62 Yokoe M, Hata J, Takada T. et al. Tokyo Guidelines 2018: diagnostic criteria and severity grading of acute cholecystitis (with videos). J Hepatobiliary Pancreat Sci 2018; 25 (01) 41-54
- 63 Mitra A, Ahn J. Liver disease in patients on total parenteral nutrition. Clin Liver Dis 2017; 21 (04) 687-695
- 64 Newsome PN, Cramb R, Davison SM. et al. Guidelines on the management of abnormal liver blood tests. Gut 2018; 67 (01) 6-19
- 65 Peng SS, Hsu WM, Chen HL, Mo YH. Using volume index and lateral hepatic angle to differentiate biliary atresia from TPN-associated cholestasis. J Pediatr Gastroenterol Nutr 2014; 59 (03) 403-408
- 66 de Moor RA, Egberts AC, Schröder CH. Ceftriaxone-associated nephrolithiasis and biliary pseudolithiasis. Eur J Pediatr 1999; 158 (12) 975-977
- 67 Ferguson LP, Gandiya T, Kaselas C, Sheth J, Hasan A, Gabra HO. Gastrointestinal complications associated with the surgical treatment of heart disease in children. J Pediatr Surg 2017; 52 (03) 414-419
- 68 Davies RR, Carver SW, Schmidt R, Keskeny H, Hoch J, Pizarro C. Gastrointestinal complications after stage I Norwood versus hybrid procedures. Ann Thorac Surg 2013; 95 (01) 189-195 , discussion 195–196
- 69 Kleinman PK, Winchester P, Brill PW. Necrotizing enterocolitis after open heart surgery employing hypothermia and cardiopulmonary bypass. AJR Am J Roentgenol 1976; 127 (05) 757-760
- 70 Luce WA, Schwartz RM, Beauseau W. et al. Necrotizing enterocolitis in neonates undergoing the hybrid approach to complex congenital heart disease. Pediatr Crit Care Med 2011; 12 (01) 46-51
- 71 del Castillo SL, McCulley ME, Khemani RG. et al. Reducing the incidence of necrotizing enterocolitis in neonates with hypoplastic left heart syndrome with the introduction of an enteral feed protocol. Pediatr Crit Care Med 2010; 11 (03) 373-377
- 72 Ho EC, Moss AJ. The syndrome of “mesenteric arteritis” following surgical repair of aortic coarctation. Report of nine cases and review of the literature. Pediatrics 1972; 49 (01) 40-45
- 73 O'Donovan DJ, Baetiong A, Adams K. et al. Necrotizing enterocolitis and gastrointestinal complications after indomethacin therapy and surgical ligation in premature infants with patent ductus arteriosus. J Perinatol 2003; 23 (04) 286-290
- 74 Lau PE, Cruz SM, Ocampo EC. et al. Necrotizing enterocolitis in patients with congenital heart disease: A single center experience. J Pediatr Surg 2018; 53 (05) 914-917
- 75 Ahle M, Ringertz HG, Rubesova E. The role of imaging in the management of necrotising enterocolitis: a multispecialist survey and a review of the literature. Eur Radiol 2018; 28 (09) 3621-3631
- 76 Juhl SM, Hansen ML, Gormsen M, Skov T, Greisen G. Staging of necrotising enterocolitis by Bell's criteria is supported by a statistical pattern analysis of clinical and radiological variables. Acta Paediatr 2019; 108 (05) 842-848
- 77 Berman L, Moss RL. Necrotizing enterocolitis: an update. Semin Fetal Neonatal Med 2011; 16 (03) 145-150
- 78 Panigrahi P. Necrotizing enterocolitis: a practical guide to its prevention and management. Paediatr Drugs 2006; 8 (03) 151-165
- 79 Hosokawa T, Yamada Y, Tanami Y, Sato Y, Hosokawa M, Oguma E. Predictors of prognosis in children with portal venous gas detected by ultrasound. Med Ultrason 2019; 21 (01) 30-36
- 80 Hosokawa T, Yamada Y, Tanami Y, Sato Y, Hosokawa M, Oguma E. Difference in detection rate of portal venous gas via computed tomography and ultrasonography in pediatric patients. Ultrasound Q 2019; 35 (02) 181-185
- 81 Hosokawa T, Takahashi H, Tanami Y, Sato Y, Hosokawa M, Oguma E. Detection of intestinal pneumatosis location by following hyperechoic foci in the portal vein along its branches with real-time ultrasound. J Ultrasound Med 2019; 38 (02) 533-538
- 82 Palleri E, Kaiser S, Wester T, Arnell H, Bartocci M. Complex fluid collection on abdominal ultrasound indicates need for surgery in neonates with necrotizing enterocolitis. Eur J Pediatr Surg 2017; 27 (02) 161-165
- 83 Muchantef K, Epelman M, Darge K, Kirpalani H, Laje P, Anupindi SA. Sonographic and radiographic imaging features of the neonate with necrotizing enterocolitis: correlating findings with outcomes. Pediatr Radiol 2013; 43 (11) 1444-1452
- 84 Lee KS, Hwang S, Hurtado Rúa SM, Janjigian YY, Gollub MJ. Distinguishing benign and life-threatening pneumatosis intestinalis in patients with cancer by CT imaging features. AJR Am J Roentgenol 2013; 200 (05) 1042-1047
- 85 Stanley JC, Criado E, Eliason JL, Upchurch Jr. GR, Berguer R, Rectenwald JE. Abdominal aortic coarctation: surgical treatment of 53 patients with a thoracoabdominal bypass, patch aortoplasty, or interposition aortoaortic graft. J Vasc Surg 2008; 48 (05) 1073-1082
- 86 Fox S, Pierce WS, Waldhausen JA. Pathogenesis of paradoxical hypertension after coarctation repair. Ann Thorac Surg 1980; 29 (02) 135-141
- 87 Shirai T, Amano J, Fujii N, Hirabayashi S, Suzuki A. Rupture of inferior phrenic artery aneurysm. An unusual complication of mesenteric arteritis due to postcoarctectomy syndrome. Chest 1994; 106 (04) 1290-1291
- 88 Pirc B. [Arteritis mesenterialis - a rare complication after aortic coarctation surgery]. Acta Chir Iugosl 1980; 27 (Suppl. 01) 527-533
- 89 Kounis NG. Postcoarctectomy mesenteric arteritis presenting as neonatal appendicitis. J Cardiovasc Surg (Torino) 1979; 20 (05) 503-505
- 90 Srouji MN, Trusler GA. Paradoxical hypertension and the abdominal pain syndrome following resection of coarctation of the aorta. Can Med Assoc J 1965; 92 (08) 412-416
- 91 Kawauchi M, Tada Y, Asano K, Sudo K. Angiographic demonstration of mesenteric arterial changes in postcoarctectomy syndrome. Surgery 1985; 98 (03) 602-604
- 92 Hosokawa T, Hosokawa M, Tanami Y. et al. Use of ultrasound findings to predict bowel ischemic changes in pediatric patients with intestinal volvulus. J Ultrasound Med 2020; 39 (04) 683-692
- 93 Muorah M, Hinds R, Verma A. et al. Liver abscesses in children: a single center experience in the developed world. J Pediatr Gastroenterol Nutr 2006; 42 (02) 201-206
- 94 Graziani MP, Moser M, Bozzola CM. et al. Acute kidney injury in children after cardiac surgery: Risk factors and outcomes. A retrospective, cohort study] (in Spanish). Arch Argent Pediatr 2019; 117 (06) e557-e567
- 95 Kellum JA, Lameire N. KDIGO AKI Guideline Work Group. Diagnosis, evaluation, and management of acute kidney injury: a KDIGO summary (Part 1). Crit Care 2013; 17 (01) 204
- 96 Podoll A, Walther C, Finkel K. Clinical utility of gray scale renal ultrasound in acute kidney injury. BMC Nephrol 2013; 14: 188
- 97 Kelahan LC, Desser TS, Troxell ML, Kamaya A. Ultrasound assessment of acute kidney injury. Ultrasound Q 2019; 35 (02) 173-180
- 98 Capotondo L, Nicolai GA, Garosi G. The role of color Doppler in acute kidney injury. Arch Ital Urol Androl 2010; 82 (04) 275-279
- 99 Meola M, Petrucci I. [Ultrasound and color Doppler in nephrology. Acute kidney injury] (in Italian). G Ital Nefrol 2012; 29 (05) 599-615
- 100 Alon US, Scagliotti D, Garola RE. Nephrocalcinosis and nephrolithiasis in infants with congestive heart failure treated with furosemide. J Pediatr 1994; 125 (01) 149-151
- 101 Hosokawa T, Tanami Y, Sato Y, Oguma E. Comparison of imaging findings between acute focal bacterial nephritis (acute lobar nephronia) and acute pyelonephritis: a preliminary evaluation of the sufficiency of ultrasound for the diagnosis of acute focal bacterial nephritis. Emerg Radiol 2020; 27 (04) 405-412
- 102 Higgerson RA, Lawson KA, Christie LM. et al; National Association of Childrenʼs Hospitals and Related Institutionʼs Pediatric Intensive Care Unit FOCUS Group. Incidence and risk factors associated with venous thrombotic events in pediatric intensive care unit patients. Pediatr Crit Care Med 2011; 12 (06) 628-634
- 103 Prasad PA, Dominguez TE, Zaoutis TE. et al. Risk factors for catheter-associated bloodstream infections in a pediatric cardiac intensive care unit. Pediatr Infect Dis J 2010; 29 (09) 812-815
- 104 Straussberg R, Harel L, Bar-Sever Z, Amir J. Radial osteomyelitis as a complication of venous cannulation. Arch Dis Child 2001; 85 (05) 408-410
- 105 Garland JS, Dunne Jr. WM, Havens P. et al. Peripheral intravenous catheter complications in critically ill children: a prospective study. Pediatrics 1992; 89 (6 Pt 2): 1145-1150
- 106 Schroeder AR, Axelrod DM, Silverman NH, Rubesova E, Merkel E, Roth SJ. A continuous heparin infusion does not prevent catheter-related thrombosis in infants after cardiac surgery. Pediatr Crit Care Med 2010; 11 (04) 489-495
- 107 Cesarone MR, Belcaro G, Agus G. et al. Management of superficial vein thrombosis and thrombophlebitis: status and expert opinion document. Angiology 2007; 58 (Suppl. 01) 7S-14S , discussion 14S–15S
- 108 Sonavane SK, Milner DM, Singh SP, Abdel Aal AK, Shahir KS, Chaturvedi A. Comprehensive imaging review of the superior vena cava. Radiographics 2015; 35 (07) 1873-1892
- 109 Gnannt R, Waespe N, Temple M. et al. Increased risk of symptomatic upper-extremity venous thrombosis with multiple peripherally inserted central catheter insertions in pediatric patients. Pediatr Radiol 2018; 48 (07) 1013-1020
- 110 Morgan RW, Stinson HR, Wolfe H. et al. Pediatric in-hospital cardiac arrest secondary to acute pulmonary embolism. Crit Care Med 2018; 46 (03) e229-e234
- 111 Khan EA, Correa AG, Baker CJ. Suppurative thrombophlebitis in children: a ten-year experience. Pediatr Infect Dis J 1997; 16 (01) 63-67
- 112 Chopra V, Anand S, Hickner A. et al. Risk of venous thromboembolism associated with peripherally inserted central catheters: a systematic review and meta-analysis. Lancet 2013; 382 (9889): 311-325
- 113 Motz P, Von Saint Andre Von Arnim A, Iyer RS, Chabra S, Likes M, Dighe M. Point-of-care ultrasound for peripherally inserted central catheter monitoring: a pilot study. J Perinat Med 2019; 47 (09) 991-996
- 114 Arya R, Schrift D, Choe C, Al-Jaghbeer M. Real-time tracheal ultrasound for the confirmation of endotracheal intubations in the intensive care unit: an observational study. J Ultrasound Med 2019; 38 (02) 491-497
- 115 Sabzi F, Faraji R, Kazeminasab M. Minimal invasive technique in atrial septal defect surgery. Cardiol Res 2018; 9 (02) 90-93
- 116 Myers PO, Mokashi SA, Horgan E. et al. Outcomes after mechanical aortic valve replacement in children and young adults with congenital heart disease. J Thorac Cardiovasc Surg 2019; 157 (01) 329-340
- 117 Baumann Kreuziger L, Karkouti K, Tweddell J, Massicotte MP. Antithrombotic therapy management of adult and pediatric cardiac surgery patients. J Thromb Haemost 2018; 16 (11) 2133-2146
- 118 Nateghian A, Taylor G, Robinson JL. Risk factors for surgical site infections following open-heart surgery in a Canadian pediatric population. Am J Infect Control 2004; 32 (07) 397-401
- 119 Allpress AL, Rosenthal GL, Goodrich KM, Lupinetti FM, Zerr DM. Risk factors for surgical site infections after pediatric cardiovascular surgery. Pediatr Infect Dis J 2004; 23 (03) 231-234
- 120 Edwards MS, Baker CJ. Median sternotomy wound infections in children. Pediatr Infect Dis 1983; 2 (02) 105-109
- 121 Nelson-McMillan K, Hornik CP, He X. et al. Delayed sternal closure in infant heart surgery-the importance of where and when: an analysis of the STS congenital heart surgery database. Ann Thorac Surg 2016; 102 (05) 1565-1572
- 122 Al-Sehly AA, Robinson JL, Lee BE. et al. Pediatric poststernotomy mediastinitis. Ann Thorac Surg 2005; 80 (06) 2314-2320
- 123 Ohye RG, Maniker RB, Graves HL, Devaney EJ, Bove EL. Primary closure for postoperative mediastinitis in children. J Thorac Cardiovasc Surg 2004; 128 (03) 480-486
- 124 Mehta PA, Cunningham CK, Colella CB, Alferis G, Weiner LB. Risk factors for sternal wound and other infections in pediatric cardiac surgery patients. Pediatr Infect Dis J 2000; 19 (10) 1000-1004
- 125 Long CB, Shah SS, Lautenbach E. et al. Postoperative mediastinitis in children: epidemiology, microbiology and risk factors for gram-negative pathogens. Pediatr Infect Dis J 2005; 24 (04) 315-319
- 126 Anslot C, Hulin S, Durandy Y. Postoperative mediastinitis in children: improvement of simple primary closed drainage. Ann Thorac Surg 2007; 84 (02) 423-428
- 127 Fleck T, Simon P, Burda G, Wolner E, Wollenek G. Vacuum assisted closure therapy for the treatment of sternal wound infections in neonates and small infants. Interact Cardiovasc Thorac Surg 2006; 5 (03) 285-288
- 128 Tönz M, von Segesser LK, Mihaljevic T, Arbenz U, Stauffer UG, Turina MI. Clinical implications of phrenic nerve injury after pediatric cardiac surgery. J Pediatr Surg 1996; 31 (09) 1265-1267
- 129 Greene CL, Mainwaring RD, Sidell D, Yarlagadda VV, Patrick WL, Hanley FL. Impact of phrenic nerve palsy and need for diaphragm plication following surgery for pulmonary atresia with ventricular septal defect and major aortopulmonary collaterals. Semin Thorac Cardiovasc Surg 2018; 30 (03) 318-324
- 130 Paret G, Gilad E, Jonas A, Meyers JJ, Barzilay Z. Acute acalculous cholecystitis in an infant after cardiac surgery. J Pediatr Surg 1994; 29 (12) 1580-1581
- 131 Carpenito KR, Prusinski R, Kirchner K. et al. Results of a feeding protocol in patients undergoing the hybrid procedure. Pediatr Cardiol 2016; 37 (05) 852-859
- 132 Elella RA, Habib E, Mokrusova P. et al. Incidence and outcome of acute kidney injury by the pRIFLE criteria for children receiving extracorporeal membrane oxygenation after heart surgery. Ann Saudi Med 2017; 37 (03) 201-206
- 133 Grieshaber P, Möller S, Arneth B. et al. Predicting cardiac surgery-associated acute kidney injury using a combination of clinical risk scores and urinary biomarkers. Thorac Cardiovasc Surg 2019
- 134 Greenberg JH, Parsons M, Zappitelli M. et al. Cardiac biomarkers for risk stratification of acute kidney injury after pediatric cardiac surgery. Ann Thorac Surg 2020; (e-pub ahead of print) DOI: 10.1016/j.athoracsur.2020.03.010.
- 135 Aydin SI, Seiden HS, Blaufox AD. et al. Acute kidney injury after surgery for congenital heart disease. Ann Thorac Surg 2012; 94 (05) 1589-1595
- 136 Atchison CM, Amankwah E, Wilhelm J. et al. Risk factors for hospital-associated venous thromboembolism in critically ill children following cardiothoracic surgery or therapeutic cardiac catheterisation. Cardiol Young 2018; 28 (02) 234-242
- 137 Parikh CR, Devarajan P, Zappitelli M. et al. Postoperative biomarkers predict acute kidney injury and poor outcomes after pediatric cardiac surgery. J Am Soc Nephrol 2011; 22 (09) 1737-1747
Address for correspondence
Publication History
Received: 03 June 2020
Accepted: 24 June 2020
Article published online:
09 September 2020
© 2020. Thieme. All rights reserved.
Georg Thieme Verlag KG
Rüdigerstraße 14, 70469 Stuttgart, Germany
-
References
- 1 Brown KL, Ridout D, Pagel C. et al. Incidence and risk factors for important early morbidities associated with pediatric cardiac surgery in a UK population. J Thorac Cardiovasc Surg 2019; 158 (04) 1185-1196.e7
- 2 Algra SO, Driessen MM, Schadenberg AW. et al. Bedside prediction rule for infections after pediatric cardiac surgery. Intensive Care Med 2012; 38 (03) 474-481
- 3 Gil-Juanmiquel L, Gratacós M, Castilla-Fernández Y. et al. Bedside ultrasound for the diagnosis of abnormal diaphragmatic motion in children after heart surgery. Pediatr Crit Care Med 2017; 18 (02) 159-164
- 4 Mangukia CV, Agarwal S, Satyarthy S, Datt V, Satsangi D. Mediastinitis following pediatric cardiac surgery. J Card Surg 2014; 29 (01) 74-82
- 5 Hosokawa T, Suzuki S, Tanami Y. et al. Ultrasound evaluation of complications after cardiovascular surgery in pediatric patients: A case series. Med Ultrason 2020; 22 (01) 108-113
- 6 Vitale V, Ricci Z, Cogo P. Lung ultrasonography and pediatric cardiac surgery: first experience with a new tool for postoperative lung complications. Ann Thorac Surg 2014; 97 (04) e121-e124
- 7 Hosokawa T, Takahashi H, Tanami Y. et al. Diagnostic accuracy of ultrasound for the directionality of testicular rotation and the degree of spermatic cord twist in pediatric patients with testicular torsion. J Ultrasound Med 2020; 39 (01) 119-126
- 8 Alabbas A, Campbell A, Skippen P, Human D, Matsell D, Mammen C. Epidemiology of cardiac surgery-associated acute kidney injury in neonates: a retrospective study. Pediatr Nephrol 2013; 28 (07) 1127-1134
- 9 Hosokawa T, Yamada Y, Tanami Y. et al. Computed tomography findings of mediastinitis after cardiovascular surgery. Pediatr Int (Roma) 2020; 62 (02) 206-213
- 10 Rakhit A, Nurko S, Gauvreau K, Mayer JE, Blume ED. Gastrointestinal complications after pediatric cardiac transplantation. J Heart Lung Transplant 2002; 21 (07) 751-759
- 11 Bello G, Blanco P. Lung ultrasonography for assessing lung aeration in acute respiratory distress syndrome: a narrative review. J Ultrasound Med 2019; 38 (01) 27-37
- 12 Hosokawa T, Tanami Y, Sato Y, Ko Y, Nomura K, Oguma E. Comparison of sonographic findings between pediatric patients with mediastinitis and without mediastinitis after cardiovascular surgery. J Med Ultrason (2001) 2020; (e-pub ahead of print) DOI: 10.1007/s10396-020-01029-3.
- 13 Hosokawa T, Yamada Y, Takahashi H. et al. Postnatal ultrasound to determine the surgical strategy for congenital diaphragmatic hernia. J Ultrasound Med 2019; 38 (09) 2347-2358
- 14 Mori T, Nomura O, Hagiwara Y, Inoue N. Diagnostic accuracy of a 3-point ultrasound protocol to detect esophageal or endobronchial mainstem intubation in a pediatric emergency department. J Ultrasound Med 2019; 38 (11) 2945-2954
- 15 Siegel Med. Pediatric Sonography 5th ed. Philadelphia, PA: Wolters Kluwer; 2018: 156-195
- 16 Sachdeva R, Valente AM, Armstrong AK. et al. ACC/AHA/ASE/HRS/ISACHD/SCAI/SCCT/SCMR/SOPE 2020 appropriate use criteria for multimodality imaging during the follow-up care of patients with congenital heart disease: a report of the American College of Cardiology Solution Set Oversight Committee and Appropriate Use Criteria Task Force, American Heart Association, American Society of Echocardiography, Heart Rhythm Society, International Society for Adult Congenital Heart Disease, Society for Cardiovascular Angiography and Interventions, Society of Cardiovascular Computed Tomography, Society for Cardiovascular Magnetic Resonance, and Society of Pediatric Echocardiography. J Am Coll Cardiol 2020; 75 (06) 657-703
- 17 Yamaguchi H, Yamauchi H, Yamada T, Ariyoshi T, Aikawa H, Kato Y. Diagnostic validity of computed tomography for mediastinitis after cardiac surgery. Ann Thorac Cardiovasc Surg 2001; 7 (02) 94-98
- 18 Tortoriello TA, Friedman JD, McKenzie ED. et al. Mediastinitis after pediatric cardiac surgery: a 15-year experience at a single institution. Ann Thorac Surg 2003; 76 (05) 1655-1660
- 19 Foldyna B, Mueller M, Etz CD. et al. Computed tomography improves the differentiation of infectious mediastinitis from normal postoperative changes after sternotomy in cardiac surgery. Eur Radiol 2019; 29 (06) 2949-2957
- 20 Abu-Omar Y, Kocher GJ, Bosco P. et al. European Association for Cardio-Thoracic Surgery expert consensus statement on the prevention and management of mediastinitis. Eur J Cardiothorac Surg 2017; 51 (01) 10-29
- 21 Thompson AF, Luan J, Al Aklabi MM, Cave DA, Ryerson LM, Noga ML. Pediatric extracorporeal membrane oxygenation (ECMO): a guide for radiologists. Pediatr Radiol 2018; 48 (10) 1488-1502
- 22 Mong A, Epelman M, Darge K. Ultrasound of the pediatric chest. Pediatr Radiol 2012; 42 (11) 1287-1297
- 23 Ismail SR, Kabbani MS, Najm HK, Shaath GA, Jijeh AM, Hijazi OM. Impact of chylothorax on the early post operative outcome after pediatric cardiovascular surgery. J Saudi Heart Assoc 2014; 26 (02) 87-92
- 24 Inoue M, Nakatsuka S, Yashiro H. et al. Lymphatic intervention for various types of lymphorrhea: access and treatment. Radiographics 2016; 36 (07) 2199-2211
- 25 Momose M, Kawakami S, Koizumi T. et al. Lymphoscintigraphy using technetium-99m HSA-DTPA with SPECT/CT in chylothorax after childbirth. Radiat Med 2008; 26 (08) 508-511
- 26 Gurevich A, Nadolski GJ, Itkin M. Novel lymphatic imaging and percutaneous treatment of chyluria. Cardiovasc Intervent Radiol 2018; 41 (12) 1968-1971
- 27 Brogi E, Gargani L, Bignami E. et al. Thoracic ultrasound for pleural effusion in the intensive care unit: a narrative review from diagnosis to treatment. Crit Care 2017; 21 (01) 325
- 28 Franco J, Llopis E, Galán G. Hemothorax after endobronchial ultrasound-guided transbronchial needle aspiration. J Bronchology Interv Pulmonol 2016; 23 (04) 328-330
- 29 Chung MH, Hsiao CY, Nian NS. et al. The benefit of ultrasound in deciding between tube thoracostomy and observative management in hemothorax resulting from blunt chest trauma. World J Surg 2018; 42 (07) 2054-2060
- 30 Ghosh RM, Griffis HM, Glatz AC. et al. Prevalence and cause of early fontan complications: does the lymphatic circulation play a role?. J Am Heart Assoc 2020; 9 (07) e015318
- 31 Pui MH, Yueh TC. Lymphoscintigraphy in chyluria, chyloperitoneum and chylothorax. J Nucl Med 1998; 39 (07) 1292-1296
- 32 Suga K, Kume N, Hara A. et al. Abnormal lymphatic flow demonstrated by lymphoscintigraphy in chylothorax correlation with lymphography. Clin Nucl Med 1999; 24 (09) 716-717
- 33 Kato M, Watanabe S, Iida T, Watanabe A. Flow pattern classification in lymphatic malformations by indocyanine green lymphography. Plast Reconstr Surg 2019; 143 (03) 558e-564e
- 34 Raimondi F, Rodriguez Fanjul J, Aversa S. et al; Lung Ultrasound in the Crashing Infant (LUCI) Protocol Study Group. Lung ultrasound for diagnosing pneumothorax in the critically ill neonate. J Pediatr 2016; 175: 74-78.e1
- 35 Smith MJ, Hayward SA, Innes SM, Miller ASC. Point-of-care lung ultrasound in patients with COVID-19 - a narrative review. Anaesthesia 2020; 75 (08) 1096-1104
- 36 Schmidt M, Pellegrino V, Combes A, Scheinkestel C, Cooper DJ, Hodgson C. Mechanical ventilation during extracorporeal membrane oxygenation. Crit Care 2014; 18 (01) 203
- 37 Moore S, Gardiner E. Point of care and intensive care lung ultrasound: A reference guide for practitioners during COVID-19. Radiography (Lond) 2020; (e-pub ahead of print) DOI: 10.1016/j.radi.2020.04.005.
- 38 Xie HQ, Zhang WW, Sun S. et al. A simplified lung ultrasound for the diagnosis of interstitial lung disease in connective tissue disease: a meta-analysis. Arthritis Res Ther 2019; 21 (01) 93
- 39 Akay TH, Ozkan S, Gultekin B. et al. Diaphragmatic paralysis after cardiac surgery in children: incidence, prognosis and surgical management. Pediatr Surg Int 2006; 22 (04) 341-346
- 40 Zhao HX, D'Agostino RS, Pitlick PT, Shumway NE, Miller DC. Phrenic nerve injury complicating closed cardiovascular surgical procedures for congenital heart disease. Ann Thorac Surg 1985; 39 (05) 445-449
- 41 Zhang YB, Wang X, Li SJ, Yang KM, Sheng XD, Yan J. Postoperative diaphragmatic paralysis after cardiac surgery in children: incidence, diagnosis and surgical management. Chin Med J (Engl) 2013; 126 (21) 4083-4087
- 42 de Vries TS, Koens BL, Vos A. Surgical treatment of diaphragmatic eventration caused by phrenic nerve injury in the newborn. J Pediatr Surg 1998; 33 (04) 602-605
- 43 Nason LK, Walker CM, McNeeley MF, Burivong W, Fligner CL, Godwin JD. Imaging of the diaphragm: anatomy and function. Radiographics 2012; 32 (02) E51-E70
- 44 Chavhan GB, Babyn PS, Cohen RA, Langer JC. Multimodality imaging of the pediatric diaphragm: anatomy and pathologic conditions. Radiographics 2010; 30 (07) 1797-1817
- 45 Epelman M, Navarro OM, Daneman A, Miller SF. M-mode sonography of diaphragmatic motion: description of technique and experience in 278 pediatric patients. Pediatr Radiol 2005; 35 (07) 661-667
- 46 Ferry PC. Neurologic sequelae of open-heart surgery in children. An 'irritating question'. Am J Dis Child 1990; 144 (03) 369-373
- 47 Menache CC, du Plessis AJ, Wessel DL, Jonas RA, Newburger JW. Current incidence of acute neurologic complications after open-heart operations in children. Ann Thorac Surg 2002; 73 (06) 1752-1758
- 48 Maller VV, Cohen HL. Neonatal head ultrasound: a review and update-part 1: techniques and evaluation of the premature neonate. Ultrasound Q 2019; 35 (03) 202-211
- 49 Trittenwein G, Nardi A, Pansi H. et al; Verein zur Durchführung wissenschaftlichter Forschung auf dem Gebeit der Neonatologie und Pädiatrischen Intensivmedizin. Early postoperative prediction of cerebral damage after pediatric cardiac surgery. Ann Thorac Surg 2003; 76 (02) 576-580
- 50 Sigler M, Vazquez-Jimenez JF, Grabitz RG. et al. Time course of cranial ultrasound abnormalities after arterial switch operation in neonates. Ann Thorac Surg 2001; 71 (03) 877-880
- 51 Svrckova P, Meshaka R, Holtrup M. et al. Imaging of cerebral complications of extracorporeal membrane oxygenation in infants with congenital heart disease - ultrasound with multimodality correlation. Pediatr Radiol 2020; 50 (07) 997-1009
- 52 Couture A, Veyrac C, Baud C, Saguintaah M, Ferran JL. Advanced cranial ultrasound: transfontanellar Doppler imaging in neonates. Eur Radiol 2001; 11 (12) 2399-2410
- 53 Wong WS, Tsuruda JS, Liberman RL, Chirino A, Vogt JF, Gangitano E. Color Doppler imaging of intracranial vessels in the neonate. AJR Am J Roentgenol 1989; 152 (05) 1065-1070
- 54 Parodi A, Govaert P, Horsch S, Bravo MC, Ramenghi LA. eurUS.brain group. Cranial ultrasound findings in preterm germinal matrix haemorrhage, sequelae and outcome. Pediatr Res 2020; 87 (Suppl. 01) 13-24
- 55 Ortinau CM, Anadkat JS, Smyser CD, Eghtesady P. Intraventricular hemorrhage in moderate to severe congenital heart disease. Pediatr Crit Care Med 2018; 19 (01) 56-63
- 56 Reeder JD, Kaude JV, Setzer ES. Choroid plexus hemorrhage in premature neonates: recognition by sonography. AJNR Am J Neuroradiol 1982; 3 (06) 619-622
- 57 Maller VV, Choudhri AF, Cohen HL. Neonatal head ultrasound: a review and update-part 2: the term neonate and analysis of brain anomalies. Ultrasound Q 2019; 35 (03) 212-223
- 58 Komatsu H, Inui A, Kishiki K. et al. Liver disease secondary to congenital heart disease in children. Expert Rev Gastroenterol Hepatol 2019; 13 (07) 651-666
- 59 Hilscher MB, Johnson JN, Cetta F. et al. Surveillance for liver complications after the Fontan procedure. Congenit Heart Dis 2017; 12 (02) 124-132
- 60 Sivan Y, Nutman J, Zeevi B, Berant M, Levinsky L, Schonfeld T. Acute hepatic failure after open-heart surgery in children. Pediatr Cardiol 1987; 8 (02) 127-130
- 61 Jenkins JG, Lynn AM, Wood AE, Trusler GA, Barker GA. Acute hepatic failure following cardiac operation in children. J Thorac Cardiovasc Surg 1982; 84 (06) 865-871
- 62 Yokoe M, Hata J, Takada T. et al. Tokyo Guidelines 2018: diagnostic criteria and severity grading of acute cholecystitis (with videos). J Hepatobiliary Pancreat Sci 2018; 25 (01) 41-54
- 63 Mitra A, Ahn J. Liver disease in patients on total parenteral nutrition. Clin Liver Dis 2017; 21 (04) 687-695
- 64 Newsome PN, Cramb R, Davison SM. et al. Guidelines on the management of abnormal liver blood tests. Gut 2018; 67 (01) 6-19
- 65 Peng SS, Hsu WM, Chen HL, Mo YH. Using volume index and lateral hepatic angle to differentiate biliary atresia from TPN-associated cholestasis. J Pediatr Gastroenterol Nutr 2014; 59 (03) 403-408
- 66 de Moor RA, Egberts AC, Schröder CH. Ceftriaxone-associated nephrolithiasis and biliary pseudolithiasis. Eur J Pediatr 1999; 158 (12) 975-977
- 67 Ferguson LP, Gandiya T, Kaselas C, Sheth J, Hasan A, Gabra HO. Gastrointestinal complications associated with the surgical treatment of heart disease in children. J Pediatr Surg 2017; 52 (03) 414-419
- 68 Davies RR, Carver SW, Schmidt R, Keskeny H, Hoch J, Pizarro C. Gastrointestinal complications after stage I Norwood versus hybrid procedures. Ann Thorac Surg 2013; 95 (01) 189-195 , discussion 195–196
- 69 Kleinman PK, Winchester P, Brill PW. Necrotizing enterocolitis after open heart surgery employing hypothermia and cardiopulmonary bypass. AJR Am J Roentgenol 1976; 127 (05) 757-760
- 70 Luce WA, Schwartz RM, Beauseau W. et al. Necrotizing enterocolitis in neonates undergoing the hybrid approach to complex congenital heart disease. Pediatr Crit Care Med 2011; 12 (01) 46-51
- 71 del Castillo SL, McCulley ME, Khemani RG. et al. Reducing the incidence of necrotizing enterocolitis in neonates with hypoplastic left heart syndrome with the introduction of an enteral feed protocol. Pediatr Crit Care Med 2010; 11 (03) 373-377
- 72 Ho EC, Moss AJ. The syndrome of “mesenteric arteritis” following surgical repair of aortic coarctation. Report of nine cases and review of the literature. Pediatrics 1972; 49 (01) 40-45
- 73 O'Donovan DJ, Baetiong A, Adams K. et al. Necrotizing enterocolitis and gastrointestinal complications after indomethacin therapy and surgical ligation in premature infants with patent ductus arteriosus. J Perinatol 2003; 23 (04) 286-290
- 74 Lau PE, Cruz SM, Ocampo EC. et al. Necrotizing enterocolitis in patients with congenital heart disease: A single center experience. J Pediatr Surg 2018; 53 (05) 914-917
- 75 Ahle M, Ringertz HG, Rubesova E. The role of imaging in the management of necrotising enterocolitis: a multispecialist survey and a review of the literature. Eur Radiol 2018; 28 (09) 3621-3631
- 76 Juhl SM, Hansen ML, Gormsen M, Skov T, Greisen G. Staging of necrotising enterocolitis by Bell's criteria is supported by a statistical pattern analysis of clinical and radiological variables. Acta Paediatr 2019; 108 (05) 842-848
- 77 Berman L, Moss RL. Necrotizing enterocolitis: an update. Semin Fetal Neonatal Med 2011; 16 (03) 145-150
- 78 Panigrahi P. Necrotizing enterocolitis: a practical guide to its prevention and management. Paediatr Drugs 2006; 8 (03) 151-165
- 79 Hosokawa T, Yamada Y, Tanami Y, Sato Y, Hosokawa M, Oguma E. Predictors of prognosis in children with portal venous gas detected by ultrasound. Med Ultrason 2019; 21 (01) 30-36
- 80 Hosokawa T, Yamada Y, Tanami Y, Sato Y, Hosokawa M, Oguma E. Difference in detection rate of portal venous gas via computed tomography and ultrasonography in pediatric patients. Ultrasound Q 2019; 35 (02) 181-185
- 81 Hosokawa T, Takahashi H, Tanami Y, Sato Y, Hosokawa M, Oguma E. Detection of intestinal pneumatosis location by following hyperechoic foci in the portal vein along its branches with real-time ultrasound. J Ultrasound Med 2019; 38 (02) 533-538
- 82 Palleri E, Kaiser S, Wester T, Arnell H, Bartocci M. Complex fluid collection on abdominal ultrasound indicates need for surgery in neonates with necrotizing enterocolitis. Eur J Pediatr Surg 2017; 27 (02) 161-165
- 83 Muchantef K, Epelman M, Darge K, Kirpalani H, Laje P, Anupindi SA. Sonographic and radiographic imaging features of the neonate with necrotizing enterocolitis: correlating findings with outcomes. Pediatr Radiol 2013; 43 (11) 1444-1452
- 84 Lee KS, Hwang S, Hurtado Rúa SM, Janjigian YY, Gollub MJ. Distinguishing benign and life-threatening pneumatosis intestinalis in patients with cancer by CT imaging features. AJR Am J Roentgenol 2013; 200 (05) 1042-1047
- 85 Stanley JC, Criado E, Eliason JL, Upchurch Jr. GR, Berguer R, Rectenwald JE. Abdominal aortic coarctation: surgical treatment of 53 patients with a thoracoabdominal bypass, patch aortoplasty, or interposition aortoaortic graft. J Vasc Surg 2008; 48 (05) 1073-1082
- 86 Fox S, Pierce WS, Waldhausen JA. Pathogenesis of paradoxical hypertension after coarctation repair. Ann Thorac Surg 1980; 29 (02) 135-141
- 87 Shirai T, Amano J, Fujii N, Hirabayashi S, Suzuki A. Rupture of inferior phrenic artery aneurysm. An unusual complication of mesenteric arteritis due to postcoarctectomy syndrome. Chest 1994; 106 (04) 1290-1291
- 88 Pirc B. [Arteritis mesenterialis - a rare complication after aortic coarctation surgery]. Acta Chir Iugosl 1980; 27 (Suppl. 01) 527-533
- 89 Kounis NG. Postcoarctectomy mesenteric arteritis presenting as neonatal appendicitis. J Cardiovasc Surg (Torino) 1979; 20 (05) 503-505
- 90 Srouji MN, Trusler GA. Paradoxical hypertension and the abdominal pain syndrome following resection of coarctation of the aorta. Can Med Assoc J 1965; 92 (08) 412-416
- 91 Kawauchi M, Tada Y, Asano K, Sudo K. Angiographic demonstration of mesenteric arterial changes in postcoarctectomy syndrome. Surgery 1985; 98 (03) 602-604
- 92 Hosokawa T, Hosokawa M, Tanami Y. et al. Use of ultrasound findings to predict bowel ischemic changes in pediatric patients with intestinal volvulus. J Ultrasound Med 2020; 39 (04) 683-692
- 93 Muorah M, Hinds R, Verma A. et al. Liver abscesses in children: a single center experience in the developed world. J Pediatr Gastroenterol Nutr 2006; 42 (02) 201-206
- 94 Graziani MP, Moser M, Bozzola CM. et al. Acute kidney injury in children after cardiac surgery: Risk factors and outcomes. A retrospective, cohort study] (in Spanish). Arch Argent Pediatr 2019; 117 (06) e557-e567
- 95 Kellum JA, Lameire N. KDIGO AKI Guideline Work Group. Diagnosis, evaluation, and management of acute kidney injury: a KDIGO summary (Part 1). Crit Care 2013; 17 (01) 204
- 96 Podoll A, Walther C, Finkel K. Clinical utility of gray scale renal ultrasound in acute kidney injury. BMC Nephrol 2013; 14: 188
- 97 Kelahan LC, Desser TS, Troxell ML, Kamaya A. Ultrasound assessment of acute kidney injury. Ultrasound Q 2019; 35 (02) 173-180
- 98 Capotondo L, Nicolai GA, Garosi G. The role of color Doppler in acute kidney injury. Arch Ital Urol Androl 2010; 82 (04) 275-279
- 99 Meola M, Petrucci I. [Ultrasound and color Doppler in nephrology. Acute kidney injury] (in Italian). G Ital Nefrol 2012; 29 (05) 599-615
- 100 Alon US, Scagliotti D, Garola RE. Nephrocalcinosis and nephrolithiasis in infants with congestive heart failure treated with furosemide. J Pediatr 1994; 125 (01) 149-151
- 101 Hosokawa T, Tanami Y, Sato Y, Oguma E. Comparison of imaging findings between acute focal bacterial nephritis (acute lobar nephronia) and acute pyelonephritis: a preliminary evaluation of the sufficiency of ultrasound for the diagnosis of acute focal bacterial nephritis. Emerg Radiol 2020; 27 (04) 405-412
- 102 Higgerson RA, Lawson KA, Christie LM. et al; National Association of Childrenʼs Hospitals and Related Institutionʼs Pediatric Intensive Care Unit FOCUS Group. Incidence and risk factors associated with venous thrombotic events in pediatric intensive care unit patients. Pediatr Crit Care Med 2011; 12 (06) 628-634
- 103 Prasad PA, Dominguez TE, Zaoutis TE. et al. Risk factors for catheter-associated bloodstream infections in a pediatric cardiac intensive care unit. Pediatr Infect Dis J 2010; 29 (09) 812-815
- 104 Straussberg R, Harel L, Bar-Sever Z, Amir J. Radial osteomyelitis as a complication of venous cannulation. Arch Dis Child 2001; 85 (05) 408-410
- 105 Garland JS, Dunne Jr. WM, Havens P. et al. Peripheral intravenous catheter complications in critically ill children: a prospective study. Pediatrics 1992; 89 (6 Pt 2): 1145-1150
- 106 Schroeder AR, Axelrod DM, Silverman NH, Rubesova E, Merkel E, Roth SJ. A continuous heparin infusion does not prevent catheter-related thrombosis in infants after cardiac surgery. Pediatr Crit Care Med 2010; 11 (04) 489-495
- 107 Cesarone MR, Belcaro G, Agus G. et al. Management of superficial vein thrombosis and thrombophlebitis: status and expert opinion document. Angiology 2007; 58 (Suppl. 01) 7S-14S , discussion 14S–15S
- 108 Sonavane SK, Milner DM, Singh SP, Abdel Aal AK, Shahir KS, Chaturvedi A. Comprehensive imaging review of the superior vena cava. Radiographics 2015; 35 (07) 1873-1892
- 109 Gnannt R, Waespe N, Temple M. et al. Increased risk of symptomatic upper-extremity venous thrombosis with multiple peripherally inserted central catheter insertions in pediatric patients. Pediatr Radiol 2018; 48 (07) 1013-1020
- 110 Morgan RW, Stinson HR, Wolfe H. et al. Pediatric in-hospital cardiac arrest secondary to acute pulmonary embolism. Crit Care Med 2018; 46 (03) e229-e234
- 111 Khan EA, Correa AG, Baker CJ. Suppurative thrombophlebitis in children: a ten-year experience. Pediatr Infect Dis J 1997; 16 (01) 63-67
- 112 Chopra V, Anand S, Hickner A. et al. Risk of venous thromboembolism associated with peripherally inserted central catheters: a systematic review and meta-analysis. Lancet 2013; 382 (9889): 311-325
- 113 Motz P, Von Saint Andre Von Arnim A, Iyer RS, Chabra S, Likes M, Dighe M. Point-of-care ultrasound for peripherally inserted central catheter monitoring: a pilot study. J Perinat Med 2019; 47 (09) 991-996
- 114 Arya R, Schrift D, Choe C, Al-Jaghbeer M. Real-time tracheal ultrasound for the confirmation of endotracheal intubations in the intensive care unit: an observational study. J Ultrasound Med 2019; 38 (02) 491-497
- 115 Sabzi F, Faraji R, Kazeminasab M. Minimal invasive technique in atrial septal defect surgery. Cardiol Res 2018; 9 (02) 90-93
- 116 Myers PO, Mokashi SA, Horgan E. et al. Outcomes after mechanical aortic valve replacement in children and young adults with congenital heart disease. J Thorac Cardiovasc Surg 2019; 157 (01) 329-340
- 117 Baumann Kreuziger L, Karkouti K, Tweddell J, Massicotte MP. Antithrombotic therapy management of adult and pediatric cardiac surgery patients. J Thromb Haemost 2018; 16 (11) 2133-2146
- 118 Nateghian A, Taylor G, Robinson JL. Risk factors for surgical site infections following open-heart surgery in a Canadian pediatric population. Am J Infect Control 2004; 32 (07) 397-401
- 119 Allpress AL, Rosenthal GL, Goodrich KM, Lupinetti FM, Zerr DM. Risk factors for surgical site infections after pediatric cardiovascular surgery. Pediatr Infect Dis J 2004; 23 (03) 231-234
- 120 Edwards MS, Baker CJ. Median sternotomy wound infections in children. Pediatr Infect Dis 1983; 2 (02) 105-109
- 121 Nelson-McMillan K, Hornik CP, He X. et al. Delayed sternal closure in infant heart surgery-the importance of where and when: an analysis of the STS congenital heart surgery database. Ann Thorac Surg 2016; 102 (05) 1565-1572
- 122 Al-Sehly AA, Robinson JL, Lee BE. et al. Pediatric poststernotomy mediastinitis. Ann Thorac Surg 2005; 80 (06) 2314-2320
- 123 Ohye RG, Maniker RB, Graves HL, Devaney EJ, Bove EL. Primary closure for postoperative mediastinitis in children. J Thorac Cardiovasc Surg 2004; 128 (03) 480-486
- 124 Mehta PA, Cunningham CK, Colella CB, Alferis G, Weiner LB. Risk factors for sternal wound and other infections in pediatric cardiac surgery patients. Pediatr Infect Dis J 2000; 19 (10) 1000-1004
- 125 Long CB, Shah SS, Lautenbach E. et al. Postoperative mediastinitis in children: epidemiology, microbiology and risk factors for gram-negative pathogens. Pediatr Infect Dis J 2005; 24 (04) 315-319
- 126 Anslot C, Hulin S, Durandy Y. Postoperative mediastinitis in children: improvement of simple primary closed drainage. Ann Thorac Surg 2007; 84 (02) 423-428
- 127 Fleck T, Simon P, Burda G, Wolner E, Wollenek G. Vacuum assisted closure therapy for the treatment of sternal wound infections in neonates and small infants. Interact Cardiovasc Thorac Surg 2006; 5 (03) 285-288
- 128 Tönz M, von Segesser LK, Mihaljevic T, Arbenz U, Stauffer UG, Turina MI. Clinical implications of phrenic nerve injury after pediatric cardiac surgery. J Pediatr Surg 1996; 31 (09) 1265-1267
- 129 Greene CL, Mainwaring RD, Sidell D, Yarlagadda VV, Patrick WL, Hanley FL. Impact of phrenic nerve palsy and need for diaphragm plication following surgery for pulmonary atresia with ventricular septal defect and major aortopulmonary collaterals. Semin Thorac Cardiovasc Surg 2018; 30 (03) 318-324
- 130 Paret G, Gilad E, Jonas A, Meyers JJ, Barzilay Z. Acute acalculous cholecystitis in an infant after cardiac surgery. J Pediatr Surg 1994; 29 (12) 1580-1581
- 131 Carpenito KR, Prusinski R, Kirchner K. et al. Results of a feeding protocol in patients undergoing the hybrid procedure. Pediatr Cardiol 2016; 37 (05) 852-859
- 132 Elella RA, Habib E, Mokrusova P. et al. Incidence and outcome of acute kidney injury by the pRIFLE criteria for children receiving extracorporeal membrane oxygenation after heart surgery. Ann Saudi Med 2017; 37 (03) 201-206
- 133 Grieshaber P, Möller S, Arneth B. et al. Predicting cardiac surgery-associated acute kidney injury using a combination of clinical risk scores and urinary biomarkers. Thorac Cardiovasc Surg 2019
- 134 Greenberg JH, Parsons M, Zappitelli M. et al. Cardiac biomarkers for risk stratification of acute kidney injury after pediatric cardiac surgery. Ann Thorac Surg 2020; (e-pub ahead of print) DOI: 10.1016/j.athoracsur.2020.03.010.
- 135 Aydin SI, Seiden HS, Blaufox AD. et al. Acute kidney injury after surgery for congenital heart disease. Ann Thorac Surg 2012; 94 (05) 1589-1595
- 136 Atchison CM, Amankwah E, Wilhelm J. et al. Risk factors for hospital-associated venous thromboembolism in critically ill children following cardiothoracic surgery or therapeutic cardiac catheterisation. Cardiol Young 2018; 28 (02) 234-242
- 137 Parikh CR, Devarajan P, Zappitelli M. et al. Postoperative biomarkers predict acute kidney injury and poor outcomes after pediatric cardiac surgery. J Am Soc Nephrol 2011; 22 (09) 1737-1747
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-1.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-2.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-3.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-4.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-5.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-6.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-7.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-8.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-9.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-10.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-11.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-12.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-13.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-14.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-15.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-16.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-17.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-18.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-19.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-20.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-21.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-22.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-23.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-24.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-25.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
![](https://www.thieme-connect.de/media/10.1055-s-00029029/202102/thumbnails/10-1055-s-0040-1715483-i2000086-26.jpg)
![Zoom Image](/products/assets/desktop/css/img/icon-figure-zoom.png)
